Structure of WI-PAG31704 CAS 852246-55-0

WI-PAG31704 CAS 852246-55-0

/in , , , , , /by

Identification

CAS Number

852246-55-0

Name

WI-PAG31704

Synonyms

Validated by Experts, Validated by Users, Non-Validated,

(2Z)-(2-Methylphenyl)[(2Z)-2-{[(propylsulfonyl)oxy]imino}-3(2H)-thiophenyliden]acetonitril [German] [ACD/IUPAC Name]

(2Z)-(2-Methylphenyl)[(2Z)-2-{[(propylsulfonyl)oxy]imino}-3(2H)-thiophenylidene]acetonitrile [ACD/IUPAC Name]

(2Z)-(2-Méthylphényl)[(2Z)-2-{[(propylsulfonyl)oxy]imino}-3(2H)-thiophénylidène]acétonitrile [French] [ACD/IUPAC Name]

852246-55-0

Benzeneacetonitrile, 2-methyl-α-[(2Z)-2-[[(propylsulfonyl)oxy]imino]-3(2H)-thienylidene]-, (αZ)- [ACD/Index Name]

PI-45514

SMILES

CC1=CC=CC=C1C(C#N)=C1C=CS/C/1=N\OS(=O)(=O)CCC

StdInChI

InChI=1S/C16H16N2O3S2/c1-3-10-23(19,20)21-18-16-14(8-9-22-16)15(11-17)13-7-5-4-6-12(13)2/h4-9H,3,10H2,1-2H3/b15-14?,18-16-

StdInChIKey

PYKXYIPEUCVBIB-JAPYYMBESA-N

Molecular Formula

C16H16N2O3S2

Molecular Weight

348.440

Properties

Appearance

Light yellow to yellow brown solid

Safety Data

Symbol

MSDS Download

Identification Methods

HPLC

Purity

99.80%min

Loss on Drying

≤0.10%

Water

≤0.05%

Content Of Chloride(mg/kg)

≤2

Acid Value(Trace)

≤0.002

Metal ion(ppb)

AI : ≤100
CA : ≤200
CR : ≤200
CU : ≤100
FE : ≤200
K : ≤100
MG ：≤100
MN ：≤100
NA ：≤200

Shelf Life

1 year

Storage

Store at room temperature for long time; sealed and away from light

Known Application

WI-PAG31704 Benzeneacetonitrile, 2-methyl-α-[2-[[(propylsulfonyl)oxy]imino]-3(2H)-thienylidene]- can be used in OLED and other electronic fields.

And it is added to photoresists to increase their sensitivity to ultraviolet (UV) light. When the resist is exposed to UV light, PAG 103 generates acid, initiating chemical reactions within the photoresist.

Under UV light exposure, PAG 103 produces acid. This acid acts as a catalyst within the photoresist, promoting reactions such as crosslinking, polymerization, or degradation.

General View of Documents

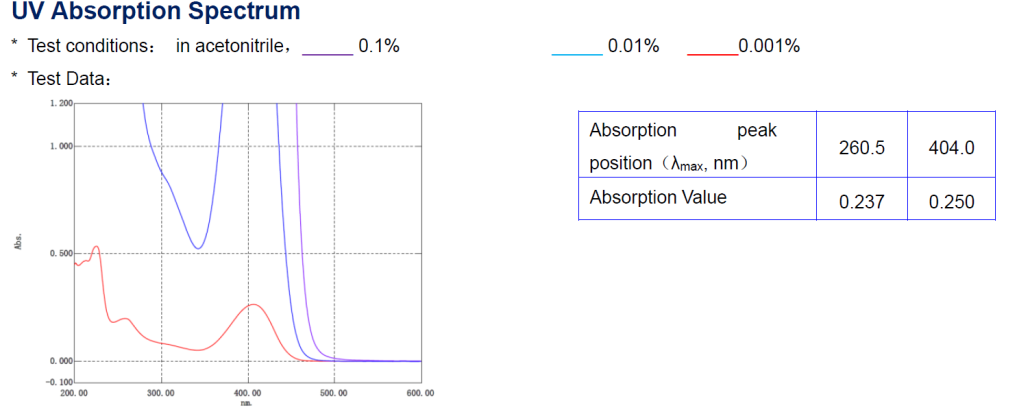

UV Absorption Spectrum of WI-PAG31704 CAS 852246-55-0

UV Absorption Spectrum of WI-PAG31704 CAS 852246-55-0
