LITHIUM NICKEL COBALT ALUMINIUM OXIDE (NCA) CAS 193214-24-3
Identification
Properties
Safety Data
Specifications & Other Information
Links
Identification
CAS Number
193214-24-3
Name
LITHIUM NICKEL COBALT ALUMINIUM OXIDE (NCA)
Synonyms
Lithium nickel cobalt aluminium oxide;
Lithium nickel cobalt aluminium oxide powder;
Properties
Appearance
Gray-black powder
Safety Data
Symbol
GHS07, GHS08Signal Word
Warning
Hazard Statements
Precautionary Statements
RIDADR
NONH for all modes of transport
WGK Germany
3
Specifications and Other Information of Our LITHIUM NICKEL COBALT ALUMINIUM OXIDE (NCA) CAS 193214-24-3
Standard
Enterprise standard

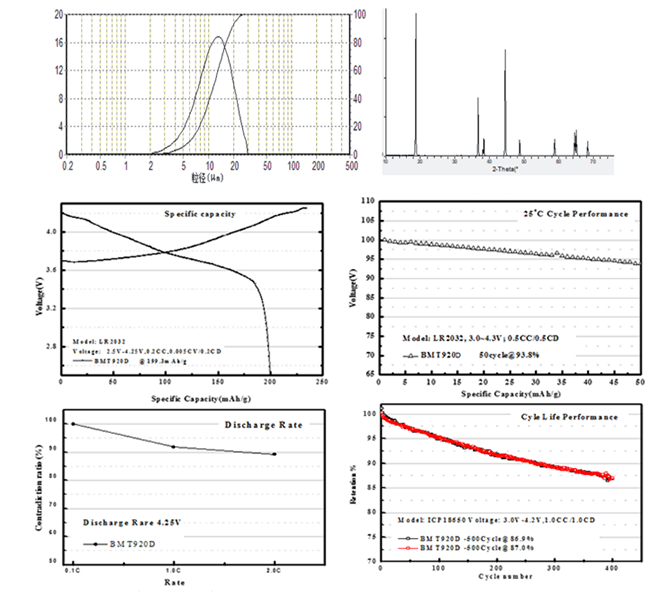

Specific Capacity(2.5~4.25V,0.2C)
199 mAh/g
Eff.
88%
Capacity retention ratio at 25℃, 50 cycles(3.0~4.25V,0.5CC/0.5CD)
93%
Detailed Specific
| Item | Unit | SPEC | ||
| Product Property | PSD | D50 | µm | 10~15 |
| D10 | µm | ≥3.5 | ||
| D90 | µm | ≤30 | ||
| Dmin | µm | – | ||
| Dmax | µm | – | ||
| Physical properties | SSA | M2/g | ≤0.8 | |
| Tap Density | g/cm3 | ≥2.0 | ||
| Main Metal | Ni | % | 53~55 | |
| Co | % | 4.5~6 | ||
| Al | % | 0.6~1.0 | ||
| Mg | % | – | ||
| Impurities | LiOH | % | – | |
| Li2CO3 | % | ≤0.35 | ||
| Fe | ppm | ≤100 | ||
| Na | ppm | ≤300 | ||
| Ca | ppm | ≤300 | ||
| Cu | ppm | ≤50 | ||
| Zn | ppm | ≤50 | ||
| S | ppm | ≤500 | ||
| pH(1:100) | – | ＜11.0 | ||
| Moisture (K.F.) | ppm | ≤500 | ||
| Electrochemical property | Cap.(2.5-4.25V,0.2CC/0.2CD) | mAh/g | ≥195 | |
| 50th cycle(0.5CC/0.5CD) | % | ≥92 | ||
Package
According to customer requirements to packaging
Manufacturing Capacity
MT Scale
Storage
Under the room temperature and away from light
Application
1. The product is currently in the PP Scale stage;
2. Mainly used in electric tools of 3.4Ah 18650.
