Structure of Graphene CAS 7782-42-5

Graphene CAS 7782-42-5

Identification
Properties
Safety Data
Specifications & Other Information
Links

Identification



CAS Number

7782-42-5

Name

Graphene

Synonyms

Graphite powder;
Graphite foil;
Industrial Graphite Nanoplatelet NMP Paste;
Graphite Nanoplatelet Carbon Nanotubes NMP Paste;
Graphene NMP Paste;
Industrial Graphite Nanoplatelet Aqueous;
Graphene Oxide Gel

Molecular Structure



Structure of Graphene CAS 7782-42-5

Structure of Graphene CAS 7782-42-5

Molecular Formula

C

Molecular Weight

12.01

EINECS

231-955-3

MDL Number

MFCD00144065

Properties

Appearance

Black powder

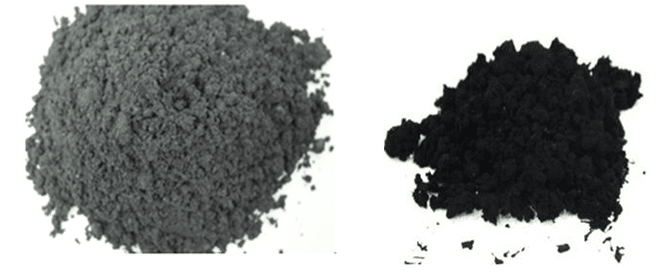

Apperance of Graphene CAS 7782-42-5

Apperance of Graphene CAS 7782-42-5

Boiling Point

3652-3697 °C(lit.)

Safety Data

Personal Protective Equipment

dust mask type N95 (US), Eyeshields, Gloves

RIDADR

NONH for all modes of transport

WGK Germany

1

RTECS

MD9659600

Specifications and Other Information of Our Graphene CAS 7782-42-5

Standard

Enterprise standard

Detailed Specification

ItemGrade 1Grade 2Grade 3
ApperanceBlack powder
pH6.0~8.0
Tap density<0.1g/cm3
BET180~280m2/g260~350m2/g400~550m2/g
Water<1.0%
Particle size(D50))<10.0 μm
C(wt%)≥98%
O(wt%)<0.1%
S(wt%)<0.1%



Package

According to customer requirements to packaging

Manufacturing Capacity

MT scale

Storage

Under the room temperature and away from light

Application

Graphene is used as an anode materials

General View of Documents

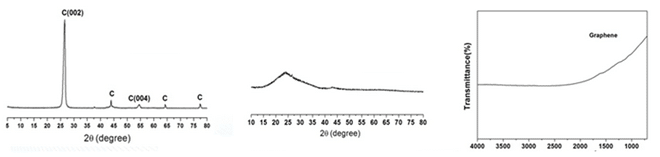

Graphene CAS 7782-42-5 XRD and IR

Graphene CAS 7782-42-5 XRD and IR

Links

This product is developed by our sub R&D company Warshel Chemical Ltd, and please click the link below for details.
http://www.warshel.com/graphene-cas-7782-42-5/

This product is sold exclusively through our sales company Watson International Ltd, and please click the link below for details.
http://www.watson-int.com/graphene-cas-7782-42-5/
